Dosatron Water Powered 11 GPM Dosers – D25 Series



Simplify your nutrient feeding regiment by installing Dosatron Water Powered Dosing systems directly into the water supply line, allowing for direct inline feeding or filling reservoir tanks. The Dosatron Dosers operate by using water pressure as the power source (no electricity needed) which activates the doser by taking up the required percentage of concentrate and mixing it with water inside the unit. The water pressure then forces the solution downstream allowing you to daisy-chain the dosers to integrate all of your nutrients and supplements into a complete streamlined feeding system. All of the D-25 Series dosers include a mounting bracket, suction hose, bypass, union, weighted strainer, and a quick start guide.

Operating pressure range is 4.3 to 85 PSI and water flow range is 0.05 to 11 GPM (0.19 to 42 LPM)

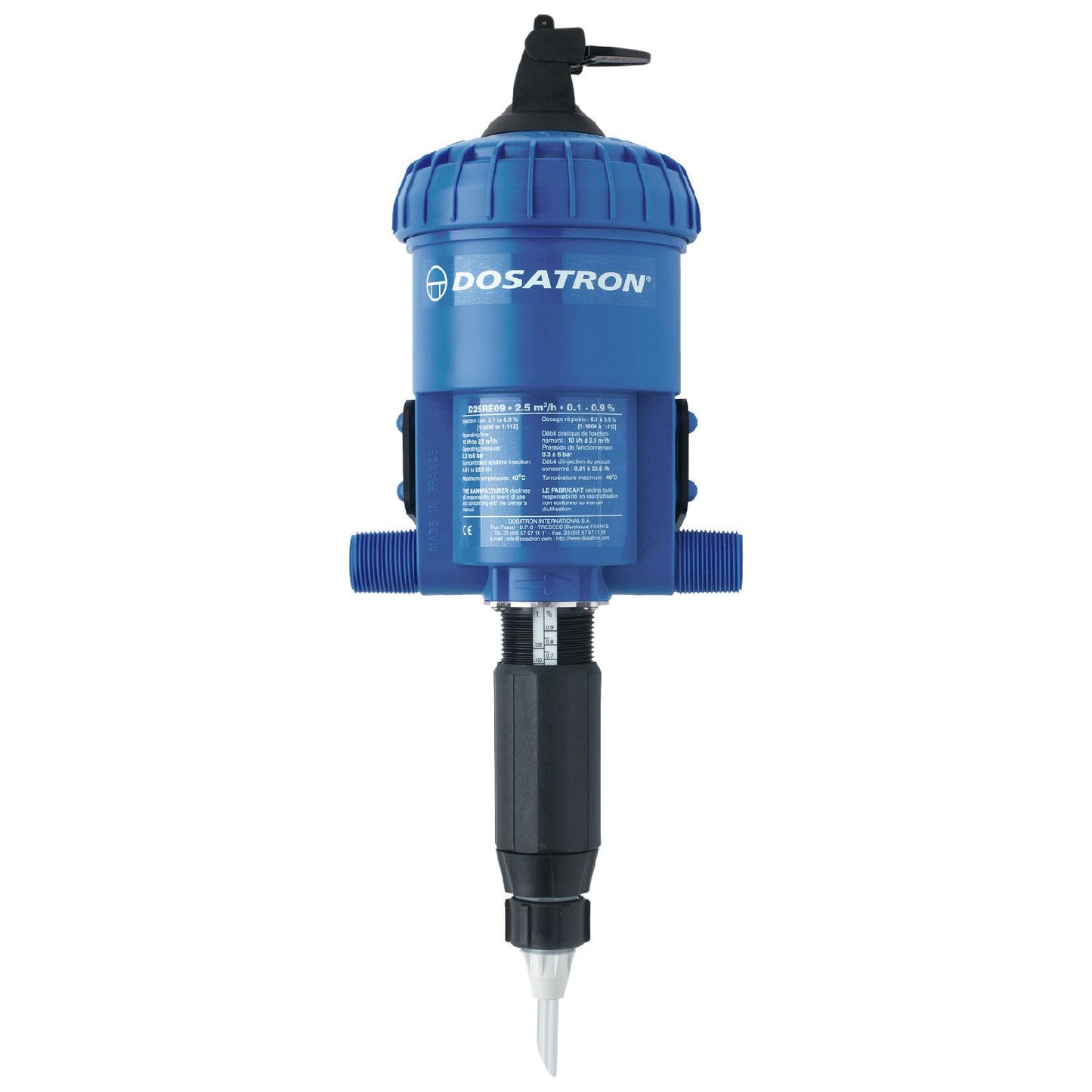

• - Injection capabilities: 1:1000 - 1:112 (0.1 to 0.9%) 0.128 - 1.280 oz/gal (4 to 34 mL/gal) [D25RE09VFBPHY]

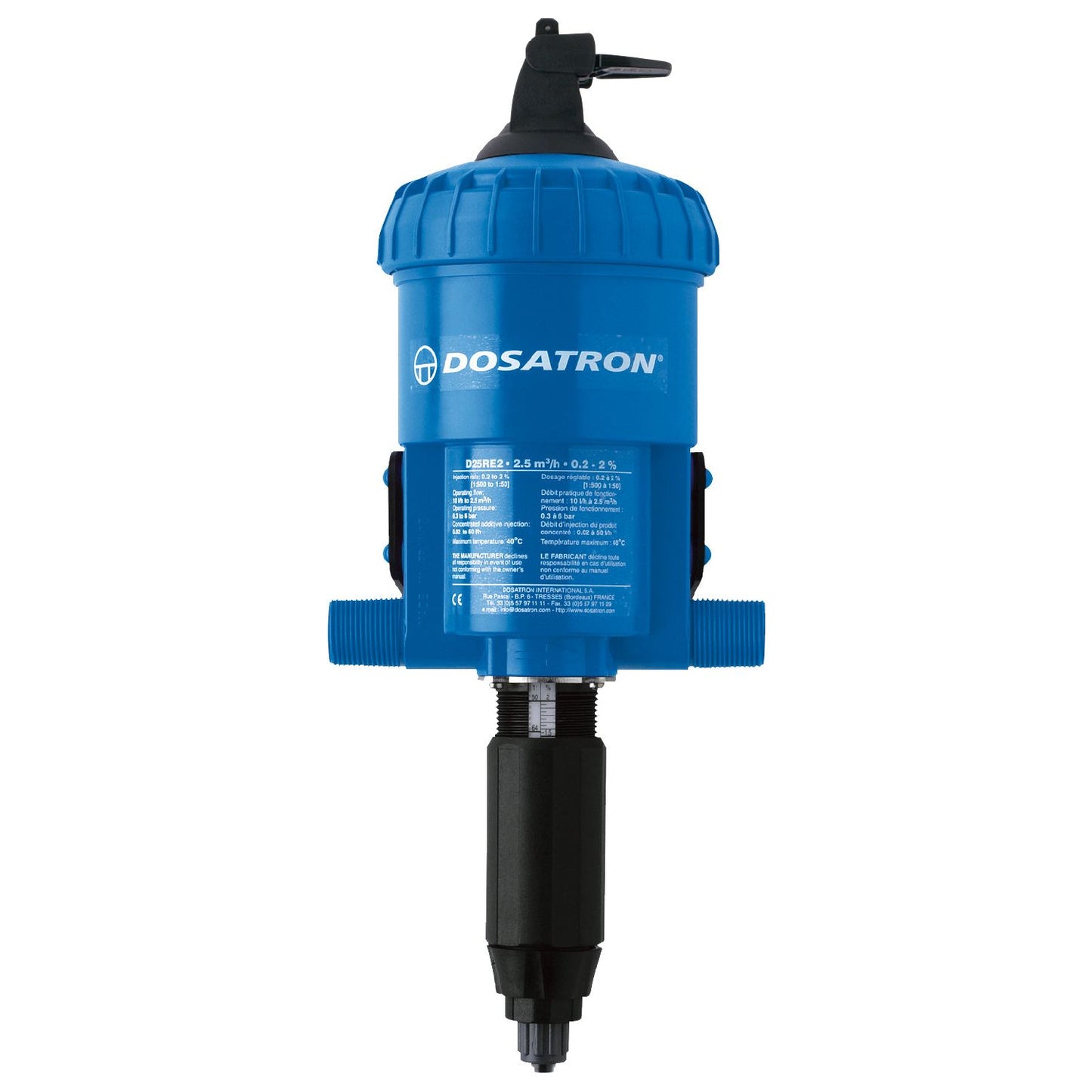

• - Injection capabilities: 1:500 - 1:50 (0.2 to 2%) 0.256 - 2.560 oz/gal (7.5 to 75 mL/gal) [D25RE2VFBPHY]

Additional parts necessary for complete system operation:

• - Dilution Solutions Water Hammer Arrestor Kit - 3/4 in [WHA34-SS-KIT]
• - Dilution Solutions Nutrient Delivery System Starter Kit - 3/4 in [HYKSTART]

Optional parts:

• - Dilution Solutions Nutrient Delivery System Mixing Chamber Kit - 3/4 in [HYKMC34]
• - Dilution Solutions Nutrient Delivery System Monitor Kit - 3/4 in [HYKMON]
• - Etatron eOne Micro-Doser Kit - 3/4 in [MDE0110MF.75KIT]
